Gastronorm Pans

GASTRONORM PANS (GN PANS)

Gastronome pans are made out of the best quality and are premium products. GN Pans are available from 2/1 to 1/9 covering all depths and sizes that are made with advanced state of the art manufacturing techniques. GN pans can be used across all industry verticals (catering, cloud kitchen, banquet, restaurants, hotels) and are anti-jamming.

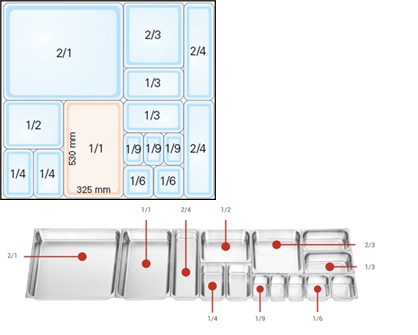

Size Dimensions Capacity
GN 2/1-20650x530 mm4.5 litre
GN 2/3-20354x325 mm1.25 litre
GN 2/3-40354x325 mm3 litre
GN 2/3-65354x325 mm5.25 litre
GN 2/3-100354x325 mm8 litre
GN 2/3-150354x325 mm11.5 litre
GN 1/1-20530x325 mm1.9 litre
GN 1/1-40530x325 mm4.5 litre
GN 1/1-65530x325 mm7.4 litre
GN 1/1-100530x325 mm12.6 litre
GN 1/1-150530x325 mm18 litre
GN 1/1-200530x325 mm25 litre
GN 1/2-20325x265 mm0.85 litre
GN 1/2-40325x265 mm1.75 litre
GN 1/2-65325x265 mm3.5 litre
GN 1/2-100325x265 mm5.5 litre
GN 1/2-150325x265 mm8.5 litre
GN 1/2-200325x265 mm11 litre
GN 1/3-40325x176 mm1.5 litre
GN 1/3-65325x176 mm2.25 litre
GN 1/3-100325x176 mm3.5 litre
GN 1/3-150325x176 mm5.5 litre
GN 1/3-200325x176 mm7.25 litre
GN 1/4-65265x162 mm1.5 litre
GN 1/4-100265x162 mm2.5 litre
GN 1/4-150265x162 mm3.75 litre
GN 1/4-200265x162 mm5.25 litre
GN 2/4-65530x162 mm3.5 litre
GN 2/4-100530x162 mm5.5 litre
GN 1/6-65176x162 mm1 litre
GN 1/6-100176x162 mm1.5 litre
GN 1/6-150176x162 mm2.25 litre
GN 1/6-200176x162 mm3 litre
GN 1/9-65176x108 mm0.5 litre
GN 1/9-100176x108 mm0.8 litre

Gastronorm Pans

1/1 GN Pan with lid starting with depth from 20mm to 200 mm.

1/2 GN Pan with Lid

1/2 GN Pan with lid starting with depth from 65mm to 200 mm.

1/3 GN Pan with Lid

1/3 GN Pan with lid starting with depth from 65mm to 200 mm

1/4 GN Pan with Lid

1/4 GN Pan with lid starting with depth from 65mm to 200 mm

1/6 GN Pan with Lid

1/6 GN Pan with lid starting with depth from 65mm to 200 mm

1/9 GN Pan with Lid

1/9 GN Pan with lid starting with depth from 65mm to 200 mm

2/1 GN Pan with Lid

2/1 GN Pan with lid starting with depth from 65mm to 200 mm

2/3 GN Pan with Lid

2/3 GN Pan with lid starting with depth from 65mm to 200 mm

2/4 GN Pan with Lid

2/4 GN Pan with lid starting with depth from 65mm to 200 mm

Ice Cream Pan - 1/2

  • Depth - 65mm, 118mm
  • Capacity - 4 ltrs, 8 ltrs
  • Description & specs (length x width x height) - 13.78 in x 9.85 in x 2.5 in 13.78 in x 9.85 in x 4.65 in

Ice Cream Pan - 1/3

  • Depth - 65mm, 118mm
  • Capacity - 2.5 ltrs, 4.5 ltrs
  • Description & Specs (Length x Width x Height) - 13.78 in x 9.85 in x 2.5 in 13.78 in x 6.65 in x 4.65 in

Ice Cream Pan - 1/4

  • Depth - 100mm
  • Capacity - 2.8 ltrs
  • Description & Specs (Length x Width x Height) - 10.37 in x 6.87 in x 4 in

Ice Cream Pan - 8/8

  • Depth - 65mm, 100mm, 150mm, 200mm
  • Capacity - 1.3 ltrs, 2.7 ltrs, 5 ltrs, 6.7 ltrs
  • Description & Specs (Length x Width x Height) - 8.25 in x 8 in x 2.5 in 8.25 in x 8 in x 4 in 8.25 in x 8 in x 6 in 8.25 in x 8 in x 9 in

Perforated Pans

Perforated Pans 1/1, 1/2, 1/3, 2/3

Air Tight Lids

Grip Lid - 1/1, 1/2, 1/3, 1/ 4, 1/6
